Snap hook with self-lock nut / Spring hooks

Table of sizes

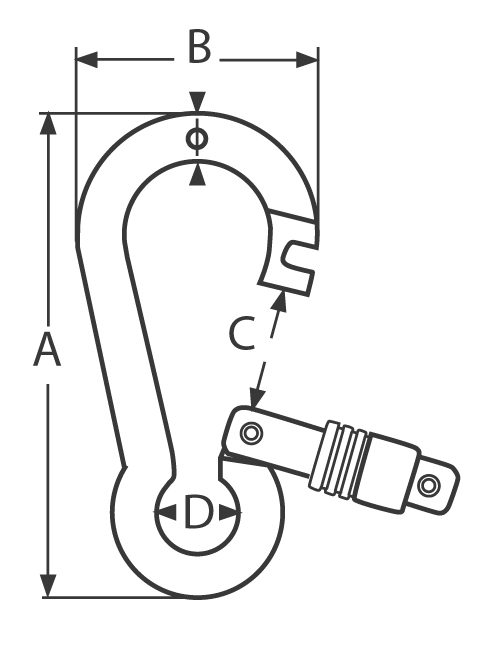

Technical drawing

Product index	Diameter	Material	A	C	D	Breaking power	Product price
2-2974-4-10x100-1	10	A4	50	27	15	1300	Ask
2-2974-4-8x80-1	8	A4	40	23	12	990	Ask
2-2974-4-6x60-1	6	A4	30	16	8,5	417	Ask
2-2974-4-5x50-1	5	A4	26	15	8	387	Ask
Product index	Diameter	Material	A	C	D	Breaking power	Product price

Requesting quantity:
